Document Manager API license key

Solidworks Document Manager API license key

The Document Manager API license key (DMLK) must be request by the Company to Dassault Systemes using SolidWorks Support WEB portal.
The license key is free and available to Company currently under subscription.
The instructions are available following this link:
https://www.solidworks.com/support/subscription/key-request/

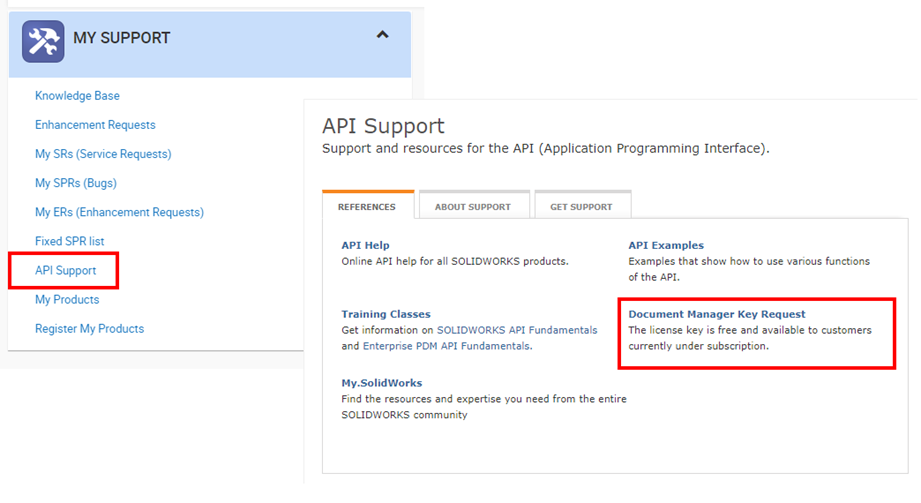

After logged in the SolidWorks Support WEB portal the Company must follow the below indication:

images_DMLK_dmlk00

The Company must fill the New Key Request Form as below:

images_DMLK_dmlk01a

images_DMLK_dmlk01b

your company data

images_DMLK_dmlk02

select Customer

images_DMLK_dmlk03

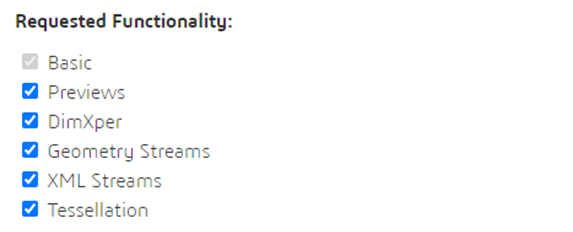

Select the version of SolidWorks that you're currently in use.
Please note if you upgrade such version a new Document Manager API License Key will be required.

images_DMLK_dmlk04

Flag ALL the Functionality, otherwise the PDM application may not work properly.

images_DMLK_dmlk05a

images_DMLK_dmlk05b

Select Internal use only

images_DMLK_dmlk06

Type "Custom tool"

images_DMLK_dmlk07

Select Other Applications

images_DMLK_dmlk08

The Document Manager API License Key is a long string with the below structure:

images_DMLK_dmlk09

Be sure that the Company and all the six Functionalities strings are present, otherwise an error message is returned by the PDM application.

Remarks

The Document Manager API License Key must be updated every time the customization owner changes the major CAD release (for example from Solidworks 2025 to Solidworks 2026)
