Description

Activates the Query page and loads and executes the query contained in the assigned file. The path of the file must be complete.

Syntax

call DBWShell("LoadQuery SQLQueryFile ["FILTER"|"WORKINGSET"] [applyToDBWFeatureManager] ")

Parameters

SQLQueryFile	The full path of a valid .sql file containing an SQL query to be run
"FILTER"	Optional. a query such as "AND <condition 1> AND <condition 2> ..."
"WORKINGSET"	Optional. the query is expected to be the list of UIDs separated by commas ( ex: 100,102,103, ) Large Working Set Mode supported. the .SQL file, containing the list of UNIQUE_IDs of the documents to be inserted in the Large Working Set, must be written with one UNIQUE_ID for each line: uid1 uid2 ... uid3 empty_line The sql file can also contain a real SQL statment that has unique_id as results (see example2).
applyToDBWFeatureManager	1: the result of the FILTER query will be applied to the DBW Feature Manager search grid of the active CAD document 0: act as usual

SQLQueryFile

The full path of a valid .sql file containing an SQL query to be run

"FILTER"

Optional. a query such as "AND <condition 1> AND <condition 2> ..."

"WORKINGSET"

Optional. the query is expected to be the list of UIDs separated by commas ( ex: 100,102,103, )

Large Working Set Mode supported.
the .SQL file, containing the list of UNIQUE_IDs of the documents to be inserted in the Large Working Set, must be written with one UNIQUE_ID for each line:

uid1
uid2
...
uid3
empty_line

The sql file can also contain a real SQL statment that has unique_id as results (see example2).

applyToDBWFeatureManager

1: the result of the FILTER query will be applied to the DBW Feature Manager search grid of the active CAD document
0: act as usual

Remarks

MechworksPDM browser must be open if no applyToDBWFeatureManager is passed.

It is preferable to use the DBWQuery standard library function instead of a direct call to the shell.

Autofit columns

It is possible to force column widths to fit results content with keyword .RESIZE_COL_WIDTH_TO_FIT

Example

Set fs = CreateObject("Scripting.FileSystemObject")

Set tfolder = fs.GetSpecialFolder(TemporaryFolder)
queryFileName = tfolder & "\PartListSample.sql"
Set a = fs.OpenTextFile( queryFileName, ForWriting, True )
a.WriteLine( "SELECT * FROM DOCUMENT WHERE T='G' AND ID='" & docId & "'" )
a.Close
DBWShell("LoadQuery " & queryFileName )
if( okDBW = False ) then exit sub

Example2

...

queryFileName = "C:\temp\MyQuery.sql"
call DBWShell("LoadQuery " & replace(queryFileName," ","|") & " WORKINGSET")
...

Example with FILTER

sub main

DBWInit(TRUE)
Set fs = CreateObject("Scripting.FileSystemObject")
Set tfolder = fs.GetSpecialFolder(TemporaryFolder)
queryFileName = tfolder & "\ProjectsListSample.sql"
Set a = fs.OpenTextFile( queryFileName, ForWriting, True )
a.WriteLine( "AND T='0'" )
a.Close
DBWShell("LoadQuery " & replace(queryFileName," ","|") & " filter" )
set fs = nothing
end sub

Example with applyToDBWFeatureManager

sub main

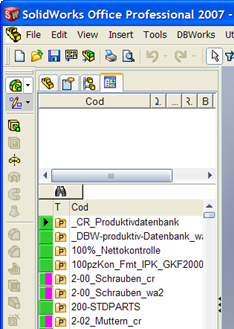

and the result is as follows:

LoadQuery_th

Example with autofit

Sub Main

Set fs = CreateObject("Scripting.FileSystemObject")
Set tfolder = fs.GetSpecialFolder(TemporaryFolder)
queryFileName = tfolder & "\PartListSample.sql"
Set a = fs.OpenTextFile(queryFileName, ForWriting, True)
a.WriteLine(".RESIZE_COL_WIDTH_TO_FIT")
a.WriteLine("SELECT ID,DESCRIPTION,CATEGORY FROM DOCUMENT WHERE T = 'P'")
a.Close
DBWShell("LoadQuery " & queryFileName)
End Sub
