OnOK.LST script file

<< Click to Display Table of Contents >>

Navigation:  Programming Mechworks PDM > DBWCommandShell > Event Scripts > DataForm >

OnOK.LST script file

Description

This script is executed when the user presses the OK button in the Data Input Form. It receives as input all the field values, then returns @OKDATA variable.

When approving (checkin → approve) a model with a linked drawing the script is invoked 1 time for the model and 2 times for the drawing (see below the @IS_PRE_DRAWING_APPROVE_CASE parameter value).

This extra call allows any Drawing Annotation, linked directly to a Drawing Property, to be properly updated by the OnOK.LST, by outputting the changed value (like a WATERMARK field use case).

Activation

Options→Data input

Input

@DRAWING_FNAME

file name

@EDIT

<0/1>
0: insert new record
1: update an existing record

@INSERT

<0/1>
1: insert new record
0: update an existing record

@REVISION_PHASE

"REVISION_PROCESSED" | "REVISION_APPROVED" | "REVISION_NEW" | "REVISION_ACTIVATED" | "CHECKIN"

Remarks

stateCOUT → stateCIN @REVISION_PHASE=CHECKIN

stateNEW → stateCIN @REVISION_PHASE=REVISION_NEW

stateREL → stateCIN @REVISION_PHASE=REVISION_NEW

@TITLE

It's the title of the dialog depending on the document type/action performed. It's used to know the context the dialog is called from.
The string format is <ACTION> <DOCUMENT_TYPE>. Possible <ACTION> are language dependent (excluded last 2 ones):
MENU_ADD_PROJECT_TITLE → New Project
MENU_EDIT → Edit / Revisions ...
MENU_NEW_BOM_ITEM → New Bom Item ...
MSG_SAVE → Save
MSG_Filter → Filter [EMPTY=all records]
MSG_Editing_multiple_records → Editing multiple records
MENU_VIEW → View
"Check in"
"Freeze"

examples

"Save... PART" | "Edit / Revisions ... PART" | "New Bom Item ... PART"
"Save... ASSEMBLY" | "Edit / Revisions ... ASSEMBLY" | "New Bom Item ... ASSEMBLY"
...

@UNIQUE_ID

uid ( only when @EDIT=1 )

@CURRENT_PROJECT

the name of the current project (highlighted by the red arrow in the TreeProject)

currentProject In this example ProjectZ is the current project

@SELECTED_PROJECT

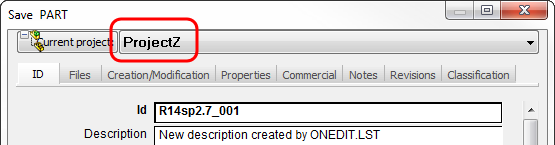

the name of the currently selected project in the Data Input Form

SelectedProject

@PARENT_WINDOW_TITLE

the title of the window the script has been called from

@PARENT_WINDOW_HANDLE

the handle (long integer) of the window the script has been called from

@CURRENT_DATAENTR_TXT_FILENAME

it allows the script developer to understand what is the current FORM definition file that invoked the script. For example, the developer can open such form definition file and look for what field names are listed into it.

@IS_PRE_DRAWING_APPROVE_CASE

1: linked drawing pre event

Remarks

Special case when a drawing is being saved:

A drawing saves its own record and that ones of the document being saved.

When saving the drawing's own record

@DRAWING_UNIQUE_ID

@DOCUMENT_UNIQUE_ID

= 0

When saving any drawn document's record

@DRAWING_UNIQUE_ID

@DOCUMENT_UNIQUE_ID

= part/assembly unique id

Output

any field name

@OKDATA

0: avoid validation
1: confirms the validation of the data

@CURRENT_PROJECT

project name

Example

.VBSCRIPT

Sub Main()
 DBWInit(TRUE)
 descr = DBWInput("DESCRIPTION")
 if descr = "Made by MechWorks" then
  DBWOutput "@OKDATA",1,ForWriting
 else
  DBWMsgBox "The description must be exactly 'Made by MechWorks'"
  DBWOutput "@OKDATA",0,ForWriting
 end if
End Sub

In the above trivial script, the validation is negated if the field DESCRIPTION is not exactly equal to a dummy value.

Example

Another example: read DESCRIPTION from configurations specific properties and fill the DESCRIPTION field in the input data form.

.VBSCRIPT

sub main()
 DBWInit(TRUE)
 fileName = DBWInput("FILE_NAME")
 fileDir = DBWInput("FILE_DIRECTORY")
 configuration = DBWInput("CONFIGURATION")
 set Part = DBWApp.ActiveDoc
 '< check if it is nothing ...>
 ...
 set cfg = Part.GetConfigurationByName( configuration )
 configurationDescription = cfg.Description
 if configurationDescription = "" then
  configurationDescription = fileName & " (" & configuration & ")"
 end if
 DBWOutput "@OKDATA", "1", ForWriting
 DBWOutput "DESCRIPTION", configurationDescription, ForAppending
end sub
