ShowDocumentSelectorDialog

Description

The command shows the Document Selector Dialog used for multiple checkout/checkin/approve, for briefcase import/export, etc.

Syntax

call DBWShell("ShowDocumentSelectorDialog title message info includeLinkedDrawings checkForeignDocuments uidList [NoTraverseChildren[NeverReturnLinkedDocuments[uidsToBePreSelected[uidsToBePreDisabled[extraColumnsToShow]]]]]")")

Parameters

title

title of the dialog

message

explaining message

info

additional info

showLinkedDrawings

0:exclude any linked drawing
1:include any linked drawing

checkForeignDocuments

0:enable the row if the document is foreign
1:disable the row if the document is foreign

uidList

A comma separated list of the documents unique ids to be listed in the Selector dialog

NoTraverseChildren

Optional.
0: traverses children tree
1: avoids the recursion through all the document's children - useful for "drawings only" lists

NeverReturnLinkedDocuments

Optional.
0: returns also document linked to selected ones (e.g. configs)
1: doesn't return linked documents

uidsToBePreSelected

Optional. A comma separated list of values to be show as already selected in the displayed dialog.

uidsToBePreDisabled

Optional. A comma separated list of values to be show as already disebled in the displayed dialog.

ShowParentTree

Optional.
0:do not show the parent tree of the current passed uid(s)
1:show the parent tree of the current passed uid(s)

typeList

Optional. A lists of the types T of the Documents that must be displayed, with a format like: 'A','P','D','G','0' and any combination of the above.

extraColumnsToShow

Optional. A comma separated list of database fields

Remarks

all the other optional parameters can be set to "0" if not necessary

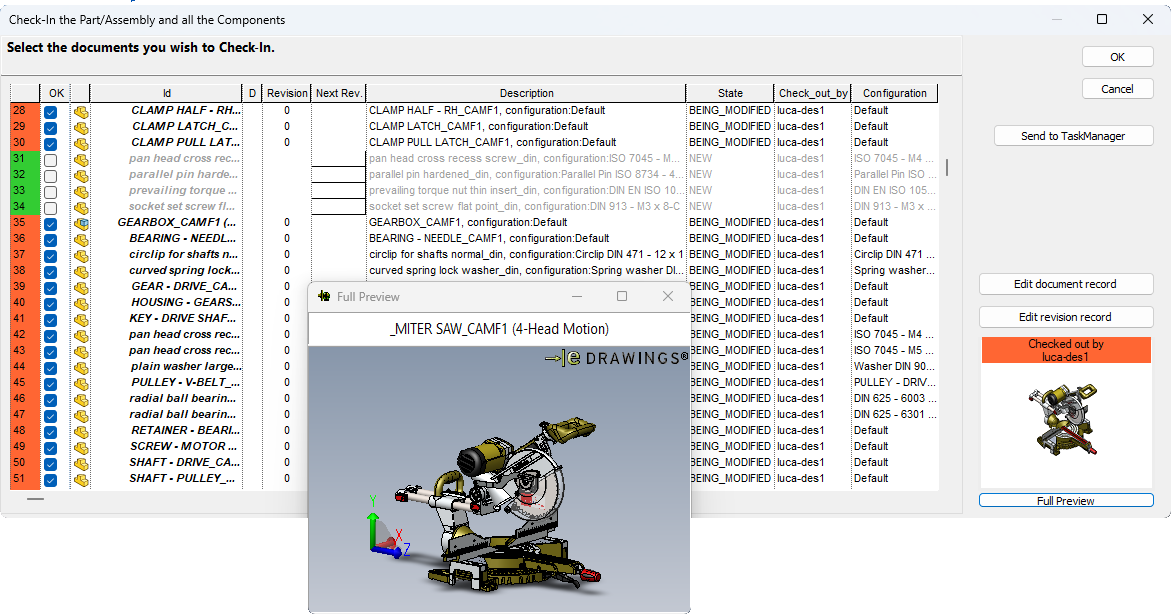

ShowDocumentSelectorDialog1

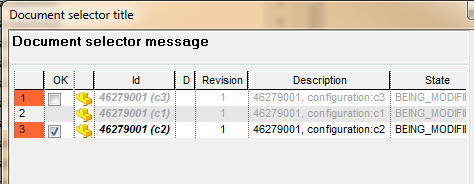

ShowDocumentSelectorDialog2

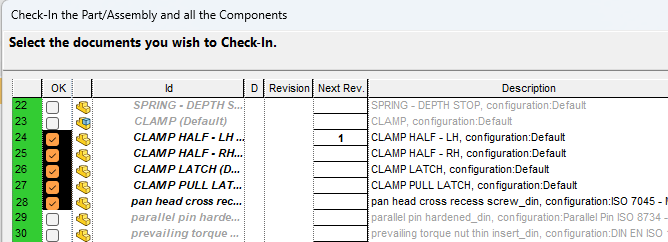

Starting from R26 the Shift range selection feature has been introduced in the OK column.

Users can toggle multiple checkboxes at once by clicking a checkbox and then using SHIFT + Click on another checkbox to apply the action to the entire range.

ShowDocumentSelectorDialog3

Results

The %tmp%\dbwreslt.in file containing a list of lines like the following:

@DOCUMENT_UNIQUE_ID

selected or linked uid 1

@DOCUMENT_UNIQUE_ID

selected or linked uid 2

@DOCUMENT_UNIQUE_ID

selected or linked uid 3

...

...

@DOCUMENT_UNIQUE_ID

selected or linked uid N

See also

GetSortedUIDListForProcessing command

Example

The following example display the above dialog

Sub main()

 DBWInit(TRUE)
 listOfUids = "671,76,26,27,32,35,37,38,43,44,45"
 listOfCheckedUids = "0"
 listOfDisabledUids = "0"
 showParentTree = "1"
 typeList = "'A','P'" ' display only parent Assemblies and Parts
 extraColumnsToShow = "CATEGORY1,CATEGORY2,CATEGORY3"
 DBWShell("ShowDocumentSelectorDialog" &_
  " " & chr(34) & "Document selector title" & chr(34) &_
  " " & chr(34) & "Document selector message" & chr(34) &_
  " " & chr(34) & "info message" & chr(34) &_
  " " & chr(34) & "1" & chr(34) &_
  " " & chr(34) & "0" & chr(34) &_
  " " & chr(34) & listOfCheckedUids & chr(34) &_
  " " & chr(34) & listOfDisabledUids & chr(34) &_
  " " & chr(34) & showParentTree & chr(34) &_
  " " & chr(34) & typeList & chr(34) &_
  " " & chr(34) & extraColumnsToShow & chr(34))
      returnedDocumentUniqueIds = ""
 Set fs = CreateObject("Scripting.FileSystemObject")
 Set tfolder = fs.GetSpecialFolder(TemporaryFolder)
 Set a = fs.OpenTextFile( tfolder & "\" & "dbwreslt.in" , ForReading, True )
 Dim tokens
 Do While a.AtEndOfStream <> True
  line = a.ReadLine
  tokens = Split( line, "=", 2, 1)
  documentUniqueId = tokens(1)
  if returnedDocumentUniqueIds<>"" then
   returnedDocumentUniqueIds = returnedDocumentUniqueIds & ","
  end if
  returnedDocumentUniqueIds = returnedDocumentUniqueIds & documentUniqueId
 Loop
 a.Close
 DBWMsgBox "Returned document uids =" & vbcrlf & returnedDocumentUniqueIds
End Sub

Another example:
given a selection in the tree, shows a dialog with selected documents only (no children, no dependent, no drawings)

Sub main()

 DBWInit(TRUE)
 DBWShell("GetSelection")
 selection = DBWResult("@SELECTION")
 DBWMsgBox selection
 title = "title"
 msg = "msg"
 info = "info"
 includeDraws = "0"
 checkForeign = "0"
 noTraverse = "1"
 NeverReturnLinkedDocuments = "0"
 DBWShell("ShowDocumentSelectorDialog" &_
   " " & chr(34) & title & chr(34) &_
   " " & chr(34) & msg & chr(34) &_
   " " & chr(34) & info & chr(34) &_
   " " & chr(34) & includeDraws & chr(34) &_
   " " & chr(34) & checkForeign & chr(34) &_
   " " & chr(34) & selection & chr(34) &_
   " " & Chr(34) & noTraverse & chr(34) &_
   " " & Chr(34) & NeverReturnLinkedDocuments & chr(34))
End Sub

Example with missing first 2 optional parameters:

Sub main()

 DBWInit(TRUE)
 listOfUids = "1235,1237,1239"
 listOfCheckedUids = "1237"
 listOfDisabledUids = "1235"
 DBWShell("ShowDocumentSelectorDialog" &_
  " " & chr(34) & "Document selector title" & chr(34) &_
  " " & chr(34) & "Document selector message" & chr(34) &_
  " " & chr(34) & "info message" & chr(34) &_
  " " & chr(34) & "1" & chr(34) &_
  " " & chr(34) & "0" & chr(34) &_
  " " & chr(34) & listOfUids & chr(34) &_
  " " & chr(34) & "0" & chr(34) &_
  " " & chr(34) & "0" & chr(34) &_
  " " & chr(34) & listOfCheckedUids & chr(34) &_
  " " & chr(34) & listOfDisabledUids & chr(34))
 returnedDocumentUniqueIds = ""
 Set fs = CreateObject("Scripting.FileSystemObject")
 Set tfolder = fs.GetSpecialFolder(TemporaryFolder)
 Set a = fs.OpenTextFile( tfolder & "\" & "dbwreslt.in" , ForReading, True )
 Dim tokens
 Do While a.AtEndOfStream <> True
  line = a.ReadLine
  tokens = Split( line, "=", 2, 1)
  documentUniqueId = tokens(1)
  if returnedDocumentUniqueIds<>"" then
   returnedDocumentUniqueIds = returnedDocumentUniqueIds & ","
  end if
  returnedDocumentUniqueIds = returnedDocumentUniqueIds & documentUniqueId
 Loop
 a.Close
 DBWMsgBox "Returned document uids =" & vbcrlf & returnedDocumentUniqueIds
End Sub
