The Document Manager API license key (DMLK) must be request by the Company to Dassault Systemes using SolidWorks Support WEB portal. The license key is free and available to Company currently under subscription.
The instructions are available following the below link:
https://www.solidworks.com/support/subscription/key-request/

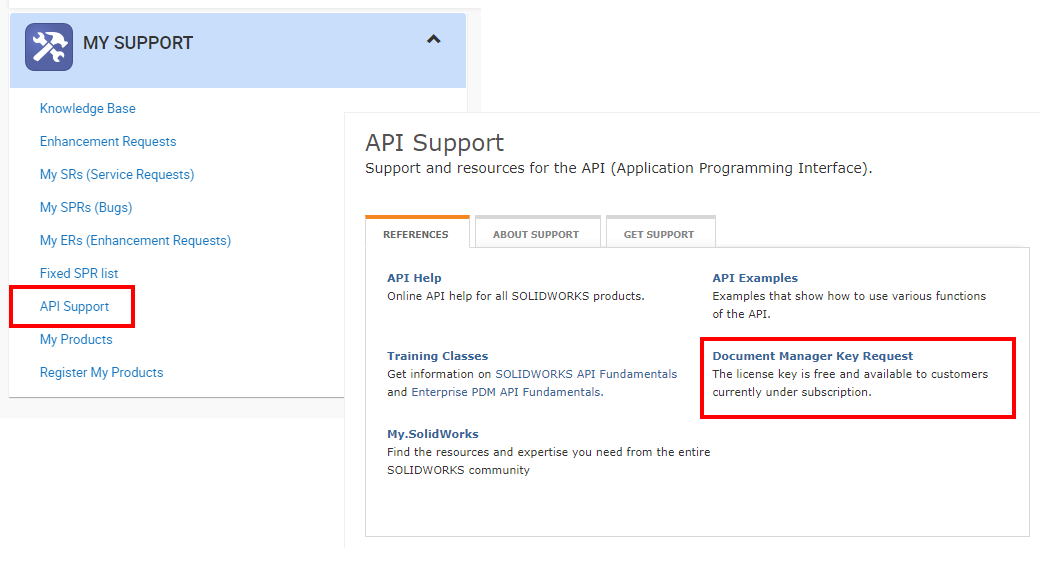

After logged in the SolidWorks Support WEB portal the Company must follow the below indication:

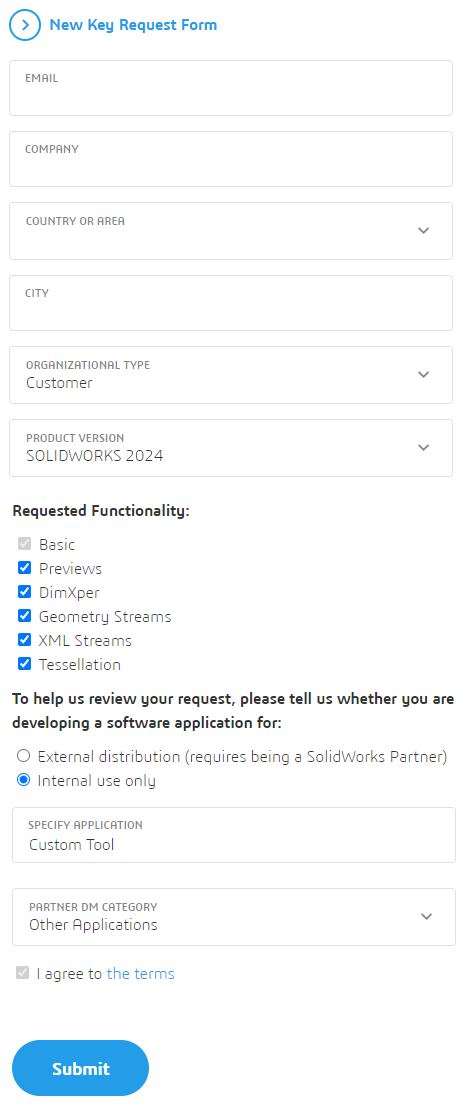

The Company must fill the “New Key Request Form” as below:
|
|
|
Company generic data |
Select “Customer” |
|
Select the Company’s SolidWorks version currently used. If the Company upgrades the SolidWorks CAD version a new Document Manager API License Key must be required. |
|
Flag all the Functionality. If not the SolidWorks add-in or Standalone application could not work properly. |
|
Select “Internal use only” |
|
Suggested “Custom tool” |
|
Select “Other Applications” |
|
|
|
The Document Manager API License Key is a long string with the below structure:
Be sure that the Company and all the six Functionalities strings are present, otherwise an error message is returned by the application.
Note:
The Document Manager API License Key must be updated every time the customization owner changes the major CAD release (for example from SolidWorks 2024 to SolidWorks 2025)
