DBWRadioInput

Description

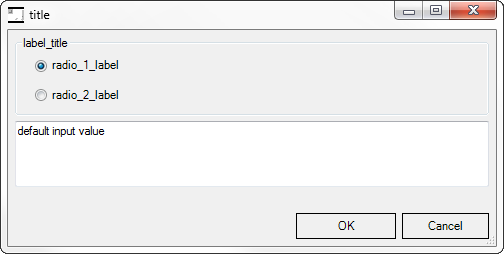

Shows a radio-input + text-box interface.

Syntax

Function DBWRadioInput(Title, LblTitle, Radio1Lbl, Radio2Lbl, DefaultRadio, DefaultInputValue, byref RadioActivebyref InputValue)

Parameters

Title

title of the form

LblTitle

title of the label

Radio1Lbl

label of the first radio button

Radio2Lbl

label of the second radio button

DefaultRadio

radio button set as default (1 or 2)

DefaultInputValue

input box value set as default

DBWradioinput

Return values

The function assumes a TRUE value if the OK button was submitted, FALSE otherwise.

radioActive

it is the radio button option checked

InputValue

it is the combo option selected

Example

The following example illustrates use of the function:

default_radio = 1
default_input_value = "sample text"
resp= DBWRadioInput ("title", "label_title", "radio_1_label", "radio_2_label", default_radio, default_input_value, radio_active , input_value)
if resp=true then
 DBWMsgbox "radio " & radio_active & vbCRLF & "inputbox: " & input_value
end if
