DBWARM Feature codes (Appendix)

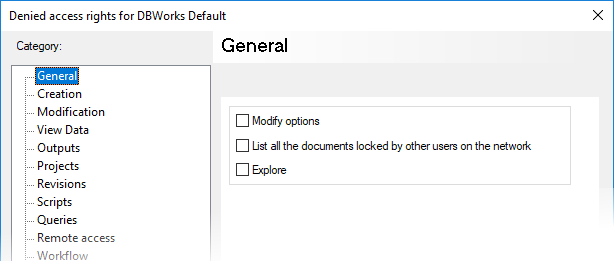

Here below is the list of feature codes to be used in the DBWIsDeniedFeature api function of MechworksPDM. They are enlisted as you can find them in the DBWARM Denied access rights for dialog
General
DBWARM_modify_options |
1 |
|---|---|
DBWARM_list_locked |
2 |
DBWARM_explore |
59 |
Creation
DBWARM_active_document_save_as |
3 |
|---|---|
DBWARM_active_document_insert_new_component |
4 |
DBWARM_add_document |
5 |
DBWARM_add_attachment |
120 |
Modification
DBWARM_open_for_updating |
6 |
|---|---|
DBWARM_allow_delete_in_open_for_browsing |
119 |
DBWARM_edit_data_part |
7 |
DBWARM_edit_data_project |
8 |
DBWARM_edit_data_generic |
9 |
DBWARM_edit_variant_note |
10 |
DBWARM_replace_referenced |
11 |
DBWARM_rename |
12 |
DBWARM_change_quantity |
48 |
DBWARM_create_new_bom_item |
47 |
DBWARM_change_bom_position_numbers |
60 |
DBWARM_detach_parent_from_child |
41 |
DBWARM_delete_files |
122 |
DBWARM_delete_managed_configurations |
123 |
View Data
DBWARM_view_data |
61 |
|---|---|
DBWARM_open_files |
62 |
DBWARM_open_files_with |
121 |
DBWARM_disable_global_documents_filter |
128 |
Outputs
DBWARM_plot |
13 |
|---|---|
DBWARM_plot_all |
14 |
DBWARM_print_all |
15 |
DBWARM_bom |
16 |
DBWARM_buy_list |
17 |
Projects
DBWARM_create_new_project |
18 |
|---|---|
DBWARM_create_new_sub_project |
46 |
DBWARM_add_remove_project |
19 |
DBWARM_add_all_to_project |
20 |
DBWARM_remove_all_from_project |
21 |
DBWARM_project_users_assignment |
36 |
DBWARM_project_documents_assignment |
58 |
Revisions
DBWARM_create_new_revision |
22 |
|---|---|
DBWARM_create_new_major_revision |
115 |
DBWARM_create_new_minor_revision |
127 |
DBWARM_rollback_revision |
118 |
DBWARM_approve_revision |
23 |
DBWARM_approve_previous_revision |
113 |
DBWARM_activate_restore_revision |
24 |
DBWARM_checkout_checkin |
25 |
DBWARM_uncheckout_uncheckin |
117 |
DBWARM_freeze |
26 |
DBWARM_create_first_revision |
27 |
DBWARM_increment_revision |
28 |
DBWARM_cannot_checkin_if_checked_out_by_other |
116 |
Scripts
DBWARM_execute_vbs |
29 |
|---|---|
DBWARM_execute_sql |
30 |
DBWARM_backup |
31 |
Queries
DBWARM_query_load |
37 |
|---|---|
DBWARM_query_save |
38 |
DBWARM_query_modify |
39 |
DBWARM_query_run |
40 |
Remote access
DBWARM_remote_access_download |
43 |
|---|---|
DBWARM_remote_access_delete_local_copy |
42 |
DBWARM_remote_access_take_ownership |
45 |
DBWARM_remote_access_transfer_ownership |
114 |
DBWARM_remote_access_refresh_downloaded_components |
44 |
DBWARM_remote_access_local_mode |
126 |
Workflow
DBWARM_workflow_ecr |
49 |
|---|---|
DBWARM_workflow_eca |
50 |
DBWARM_workflow_raise_ecr |
51 |
DBWARM_workflow_super_admin |
54 |
Webviewer
DBWARM_webviewer_can_download_cad_documents |
55 |
|---|---|
DBWARM_webviewer_can_view_a_documents_record |
56 |
DBWARM_webviewer_can_view_BOM |
57 |
DBWARM_webviewer_ex_custom_right_1 |
81 |
DBWARM_webviewer_ex_custom_right_2 |
82 |
DBWARM_webviewer_ex_custom_right_3 |
83 |
DBWARM_webviewer_ex_custom_right_4 |
84 |
DBWARM_webviewer_ex_custom_right_5 |
85 |
DBWARM_webviewer_ex_custom_right_6 |
86 |
DBWARM_webviewer_ex_custom_right_7 |
87 |
DBWARM_webviewer_ex_custom_right_8 |
88 |
DBWARM_webviewer_ex_custom_right_9 |
89 |
DBWARM_webviewer_ex_custom_right_10 |
90 |
DBWARM_webviewer_ex_custom_right_11 |
91 |
DBWARM_webviewer_ex_custom_right_12 |
92 |
DBWARM_webviewer_ex_custom_right_13 |
93 |
DBWARM_webviewer_ex_custom_right_14 |
94 |
System administration
DBWARM_printer_setup |
32 |
|---|---|
DBWARM_plot_setup |
33 |
DBWARM_event_log |
34 |
DBWARM_reset_event_log |
35 |
DBWARM_briefcase_read |
52 |
DBWARM_briefcase_write |
53 |
DBWARM_task_priority |
125 |
DBWARM_notifications_send |
124 |
Custom rights
DBWARM_ex_custom_right_1 |
65 |
|---|---|
DBWARM_ex_custom_right_2 |
66 |
DBWARM_ex_custom_right_3 |
67 |
DBWARM_ex_custom_right_4 |
68 |
DBWARM_ex_custom_right_5 |
69 |
DBWARM_ex_custom_right_6 |
70 |
DBWARM_ex_custom_right_7 |
71 |
DBWARM_ex_custom_right_8 |
72 |
DBWARM_ex_custom_right_9 |
73 |
DBWARM_ex_custom_right_10 |
74 |
DBWARM_ex_custom_right_11 |
75 |
DBWARM_ex_custom_right_12 |
76 |
DBWARM_ex_custom_right_13 |
77 |
DBWARM_ex_custom_right_14 |
78 |
DBWARM_ex_custom_right_15 |
79 |
DBWARM_ex_custom_right_16 |
80 |
DBWARM_webviewer_ex_custom_right_15 |
95 |
DBWARM_webviewer_ex_custom_right_16 |
96 |
DBWARM_ex_custom_right_17 |
97 |
DBWARM_ex_custom_right_18 |
98 |
DBWARM_ex_custom_right_19 |
99 |
DBWARM_ex_custom_right_20 |
100 |
DBWARM_ex_custom_right_21 |
101 |
DBWARM_ex_custom_right_22 |
102 |
DBWARM_ex_custom_right_23 |
103 |
DBWARM_ex_custom_right_24 |
104 |
DBWARM_ex_custom_right_25 |
105 |
DBWARM_ex_custom_right_26 |
106 |
DBWARM_ex_custom_right_27 |
107 |
DBWARM_ex_custom_right_28 |
108 |
DBWARM_ex_custom_right_29 |
109 |
DBWARM_ex_custom_right_30 |
110 |
DBWARM_ex_custom_right_31 |
111 |
DBWARM_ex_custom_right_32 |
112 |
Special rights not included in DBWARM interface
DBWARM_USE_EXTENDED_CODES |
63 |
|---|---|
DBWARM_super_admin |
64 |
