GetComponentFileNameFromSearchDialog

available from build: 20041105

Description

This command popups the Component Search Dialog for choosing a component file name / configuration

Syntax

call DBWShell("GetComponentFileNameFromSearchDialog")

Remarks

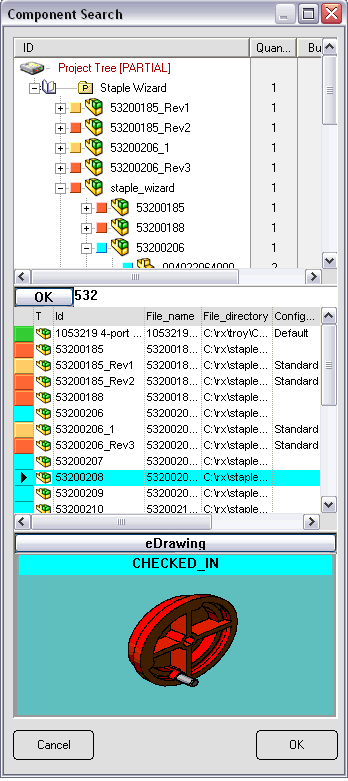

The dialog shown:

ComponentSearchDialog

Starting from build 20050429 this command is availble for StandAlone installations too.

Results

@DOCUMENT_UNIQUE_ID

the unique of the component selected in the dialog

@DOCUMENT_PATHNAME

the full path name of the component selected in the dialog

@DOCUMENT_CONFIGURATION

the configuration of the component selected in the dialog

Example

sub main

 DBWInit(TRUE)
 DBWShell("GetComponentFileNameFromSearchDialog")
 uid = DBWResult("@DOCUMENT_UNIQUE_ID")
 fileName = DBWResult("@DOCUMENT_PATHNAME")
 configuration = DBWResult("@DOCUMENT_CONFIGURATION")
 DBWMsgBox "FileName=" & fileName & vbCrLf & "Configuration=" & configuration & vbCrLf & "uid=" & uid
end sub
