Description

It is possible to assign a specific menu item order and to insert separators.



Remarks

To perform ordering and separating you've to apply the following naming conventions to the scripts:

a.Order sequences
if the script file name begins with a sequence "(￿)" ( opened round bracket, characters, closed round bracket ), the file name will be displayed in the pop-up menu without this particular sequence; this allows to order the file names as desired.

b.Separators
if the script file name contains all minus sign characters "-" ( except an eventual beginning order sequence ), a separator menu item will be displayed for it.



Any .UIvbs file associated with the scripts must not contain the order sequence in it's file name.

This feature works only with NTFS file system type.



This feature can be applied to folders too.



See also

UIvbs script to enable or disable script in the RMB pop-up menu



Example

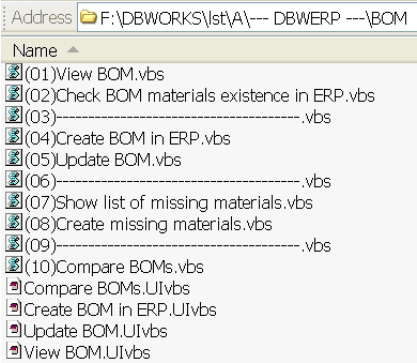

These are file names taken from Windows Explorer





and this is the corresponding RMB pop-up menu

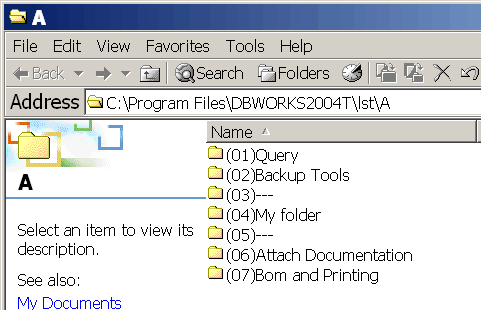

Same procedure but with folders...



corresponding RMB pop-up menu
