Programming Mechworks PDM > DBWCommandShell > Event Scripts > UserInterface

Description

This script allows to deselect/disable items in the Document Selector Dialog.

Activation

It is executed if existing in the LST folder

Input

@CONTEXT	the context in which the script is run; possible values: ReloadSkippedDocuments BriefcaseWrite BriefcaseRead BriefcaseInconsistentParentChildStructure RemoteAccessChangeOwnership RevisionCheckout RevisionCheckin RevisionApprove ShowRevisionCheckoutDialog ShowRevisionCheckinDialog ShowRevisionApproveDialog WorkflowSubmitDocuments ShowDocumentSelectorDialog
@UID	the unique_id of the document included in the dialoge.g. @UID=<unique_id #1> @UID=<unique_id #2> ... @UID=<unique_id #N>

@CONTEXT

the context in which the script is run; possible values:

ReloadSkippedDocuments
BriefcaseWrite
BriefcaseRead
BriefcaseInconsistentParentChildStructure
RemoteAccessChangeOwnership
RevisionCheckout
RevisionCheckin
RevisionApprove
ShowRevisionCheckoutDialog
ShowRevisionCheckinDialog
ShowRevisionApproveDialog
WorkflowSubmitDocuments
ShowDocumentSelectorDialog

@UID

the unique_id of the document included in the dialoge.g.

@UID=<unique_id #1>
@UID=<unique_id #2>
...
@UID=<unique_id #N>

Output

@OKPROCESSED	0:stop the process; 1: proceed with program flow;
@UID	the unique_id of the document to be disabled in the dialoge.g. @UID=<unique_id to be disabled #1> @UID=<unique_id to be disabled #2> ... @UID=<unique_id to be disabled #N>
@UID_DESELECT	the unique_id of the document to be enabled but deselected in the dialoge.g. @UID_DESELECT=<unique_id to be deselected #1> @UID_DESELECT=<unique_id to be deselected #2> ... @UID_DESELECT=<unique_id to be deselected #N>

@OKPROCESSED

0:stop the process;
1: proceed with program flow;

@UID

the unique_id of the document to be disabled in the dialoge.g.

@UID=<unique_id to be disabled #1>
@UID=<unique_id to be disabled #2>
...
@UID=<unique_id to be disabled #N>

@UID_DESELECT

the unique_id of the document to be enabled but deselected in the dialoge.g.

@UID_DESELECT=<unique_id to be deselected #1>
@UID_DESELECT=<unique_id to be deselected #2>
...
@UID_DESELECT=<unique_id to be deselected #N>

Example

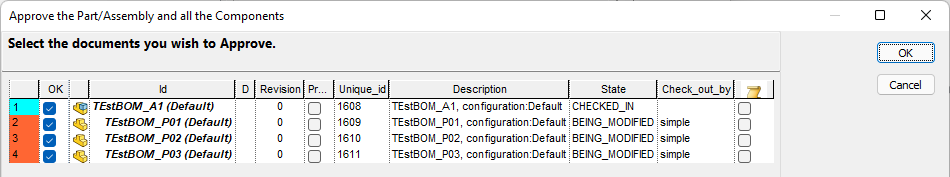

Assume this as starting status: OnSelectorDialogItemsDisabler01

.VBSCRIPT

'.x64
sub main()
DBWMsgbox "OnSelectorDialogItemsDisabler.LST"
DBWInit(true)
  context = DBWInput("@CONTEXT")
If context = "ReloadSkippedDocuments" Then
ElseIf context = "BriefcaseWrite" Then
ElseIf context = "BriefcaseRead" Then
ElseIf context = "BriefcaseInconsistentParentChildStructure" Then
ElseIf context = "RemoteAccessChangeOwnership" Then
ElseIf context = "RevisionCheckout" Then
ElseIf context = "RevisionCheckin" Then
ElseIf context = "RevisionApprove" Then
  DBWoutput "@OKPROCESSED",1,ForWriting
  DBWoutput "@UID","1609",ForAppending   'here it sets to DISABLE the record with uid 1609
  DBWoutput "@UID_DESELECT","1611",ForAppending  'here it sets to DESELECT the  record with uid 1611
ElseIf context = "ShowRevisionCheckoutDialog" Then
ElseIf context = "ShowRevisionCheckinDialog" Then
ElseIf context = "ShowRevisionApproveDialog" Then
ElseIf context = "WorkflowSubmitDocuments" Then
ElseIf context = "ShowDocumentSelectorDialog" Then
End If
end sub

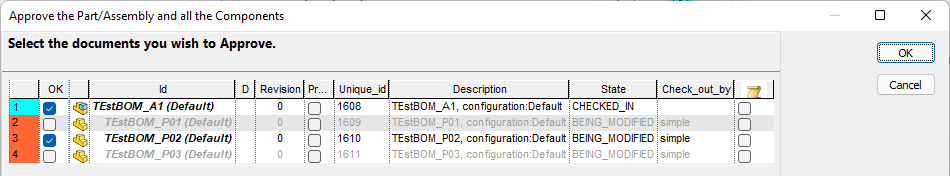

so the result will be as follows: OnSelectorDialogItemsDisabler02
