The Printerinfo.exe utility
This utility (located under BIN\ folder of the installation path) displays, for every printer installed on the local machine (also network printers), the accepted codes to be used in the SHEET_FORMAT.LST file. It is easier to use than the DBWGDPPS.EXE utility.

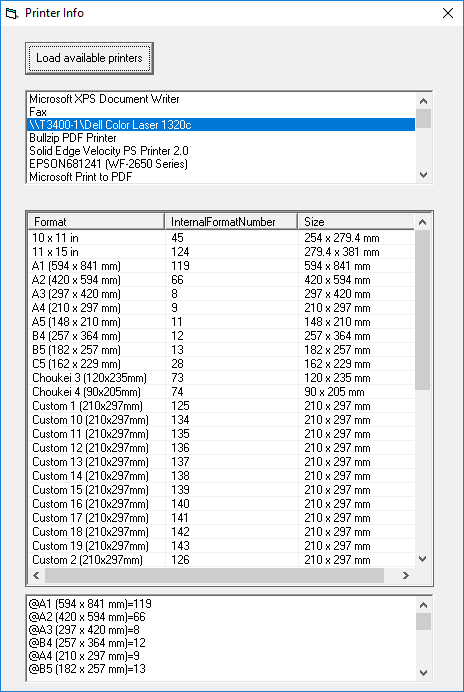

Press the button Load available printers to populate the list of the available printers, then select a printer to display the accepted codes.
At the bottom, there is a list ready to be copied and pasted in the SHEET_FORMAT.LST file.
More information on the subject is available in the topic Plotting large paper size sheets.
Here below are enum values to be used with Inventor Print Manager
Name |
Value |
Description |
|---|---|---|
kPaperSize10x14 |
14337 |
Paper size for 10x14. |
kPaperSize11x17 |
14338 |
Paper size for 11x17. |
kPaperSizeA0 |
14357 |
Paper size for ISO A0 (Applicable to drawings only). |
kPaperSizeA0Oversize |
14358 |
Paper size for ISO A0 Oversize (Applicable to drawings only). |
kPaperSizeA1 |
14359 |
Paper size for ISO A1 (Applicable to drawings only). |
kPaperSizeA1Oversize |
14360 |
Paper size for ISO A1 Oversize (Applicable to drawings only). |
kPaperSizeA2 |
14339 |
Paper size for ISO A2. |
kPaperSizeA2Oversize |
14361 |
Paper size for ISO A2 Oversize (Applicable to drawings only). |
kPaperSizeA3 |
14340 |
Paper size for ISO A3. |
kPaperSizeA4 |
14341 |
Paper size for ISO A4. |
kPaperSizeA4Small |
14342 |
Paper size for A4 Small. |
kPaperSizeA5 |
14343 |
Paper size for ISO A5. |
kPaperSizeA6 |
14365 |
Paper size for ISO A6. |
kPaperSizeB0 |
14366 |
Paper size for ISO B0 (Applicable to drawings only). |
kPaperSizeB1 |
14362 |
Paper size for ISO B1 (Applicable to drawings only). |
kPaperSizeB2 |
14363 |
Paper size for ISO B2 (Applicable to drawings only). |
kPaperSizeB3 |
14364 |
Paper size for ISO B3 (Applicable to drawings only). |
kPaperSizeB4 |
14344 |
Paper size for ISO B4. |
kPaperSizeB5 |
14345 |
Paper size for ISO B5. |
kPaperSizeB6 |
14367 |
Paper size for ISO B6 (Applicable to drawings only). |
kPaperSizeCSheet |
14346 |
Paper size for C size sheet. |
kPaperSizeCustom |
14355 |
Paper size for Custom. |
kPaperSizeDefault |
14356 |
Paper size for Default. |
kPaperSizeDSheet |
14347 |
Paper size for D size sheet. |
kPaperSizeESheet |
14348 |
Paper size for E size sheet. |
kPaperSizeExecutive |
14349 |
Paper size for Executive. |
kPaperSizeFolio |
14350 |
Paper size for Folio. |
kPaperSizeLedger |
14351 |
Paper size for Ledger. |
kPaperSizeLegal |
14352 |
Paper size for Legal. |
kPaperSizeLetter |
14353 |
Paper size for Letter. |
kPaperSizeQuarto |
14354 |
Paper size for Quarto. |
Example
This is a vbs code to implement the plotting through the Inventor Print Manager:
...
Set oPrintMgr = oApp.ActiveDocument.PrintManager
Call oPrintMgr.SetSheetRange(i,i)
oPrintMgr.Printer = sPrinter
If sPaperSize<>0 Then
oPrintMgr.PaperSize = sPaperSize
End if
oPrintMgr.SubmitPrint
...
please note in case you want to specify a custom format (kPaperSizeCustom) you've to enter also 2 additional parameters:
...
oPrintMgr.PaperSize = PaperSizeEnum.kPaperSizeCustom
oPrintMgr.PaperHeight = 15
oPrintMgr.PaperWidth = 10
...
