Current grid

The current grid

The concept of current grig is mainly linked to the DocumentsPage, that shows different grids at the same time (each grid has a specific content but they're all related).

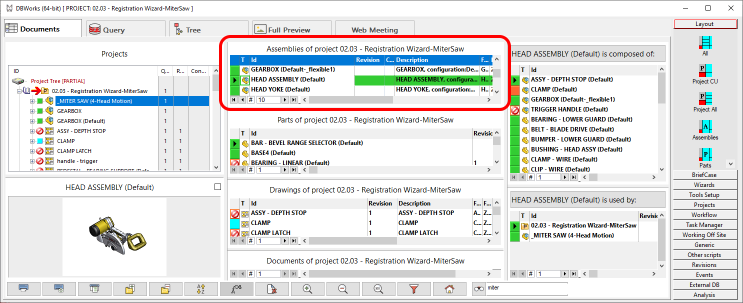

Documents Page

MechworksPDM in its Documents Page always activates a grid as current so that every such action will apply only to it.

The current grid is the one with the columns header highlight:

images_currentGridDocPage

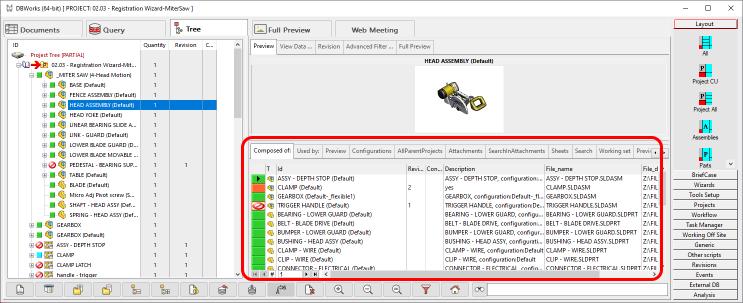

Tree Page

For TreePage the grids are tipically shown in Tabs, so one a time; for this reason the current grid is quite clear there.

images_currentGridTreePage

There are many actions, mainly available through buttons, that apply preferentially to one grid at a time, as for instance sorting or filtering.
