Security and Maintenance > DBWARM User name vs Windows Display Name

UserName, DisplayName and Full User Name

Here is explained how MechworksPDM interacts with DBWARM and Windows Domain settings about user authentication.

Suppose the following scenario:

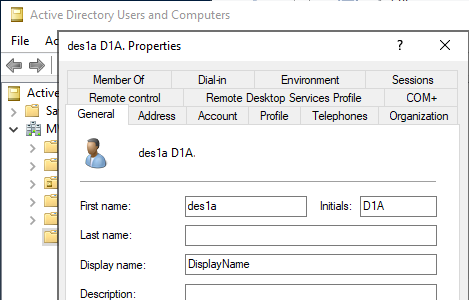

images_windowsDomainActiveDirectory images_DBWARM_FullUserName

that means:

•Windows user: des1a

•Windows display name: DisplayName

•DBWARM user: des1a

•DBWARM Full User Name: FullUserName

Here is the behaviour of the login process according to different option settings.

Options set	resulting PDM user
Environment→Use Full User Name (only on Windows domains)	des1a
Environment→DBWARM→Enable DBWARM Access Rights Manager
Environment→DBWARM→Use DBWARM Login
Environment→DBWARM→Use DBWARM Full User Name

Options set	resulting PDM user
Environment→Use Full User Name (only on Windows domains)	DisplayName
Environment→DBWARM→Enable DBWARM Access Rights Manager
Environment→DBWARM→Use DBWARM Login
Environment→DBWARM→Use DBWARM Full User Name

Options set	resulting PDM user
Environment→Use Full User Name (only on Windows domains)	DisplayName
Environment→DBWARM→Enable DBWARM Access Rights Manager
Environment→DBWARM→Use DBWARM Login
Environment→DBWARM→Use DBWARM Full User Name

Options set	resulting PDM user
Environment→Use Full User Name (only on Windows domains)	DisplayName
Environment→DBWARM→Enable DBWARM Access Rights Manager
Environment→DBWARM→Use DBWARM Login
Environment→DBWARM→Use DBWARM Full User Name

Options set	resulting PDM user
Environment→Use Full User Name (only on Windows domains)	FullUserName
Environment→DBWARM→Enable DBWARM Access Rights Manager
Environment→DBWARM→Use DBWARM Login
Environment→DBWARM→Use DBWARM Full User Name

Options set	resulting PDM user
Environment→Use Full User Name (only on Windows domains)	FullUserName
Environment→DBWARM→Enable DBWARM Access Rights Manager
Environment→DBWARM→Use DBWARM Login
Environment→DBWARM→Use DBWARM Full User Name

Options set	resulting PDM user
Environment→Use Full User Name (only on Windows domains)	des1a
Environment→DBWARM→Enable DBWARM Access Rights Manager
Environment→DBWARM→Use DBWARM Login
Environment→DBWARM→Use DBWARM Full User Name

Options set	resulting PDM user
Environment→Use Full User Name (only on Windows domains)	des1a
Environment→DBWARM→Enable DBWARM Access Rights Manager
Environment→DBWARM→Use DBWARM Login
Environment→DBWARM→Use DBWARM Full User Name
